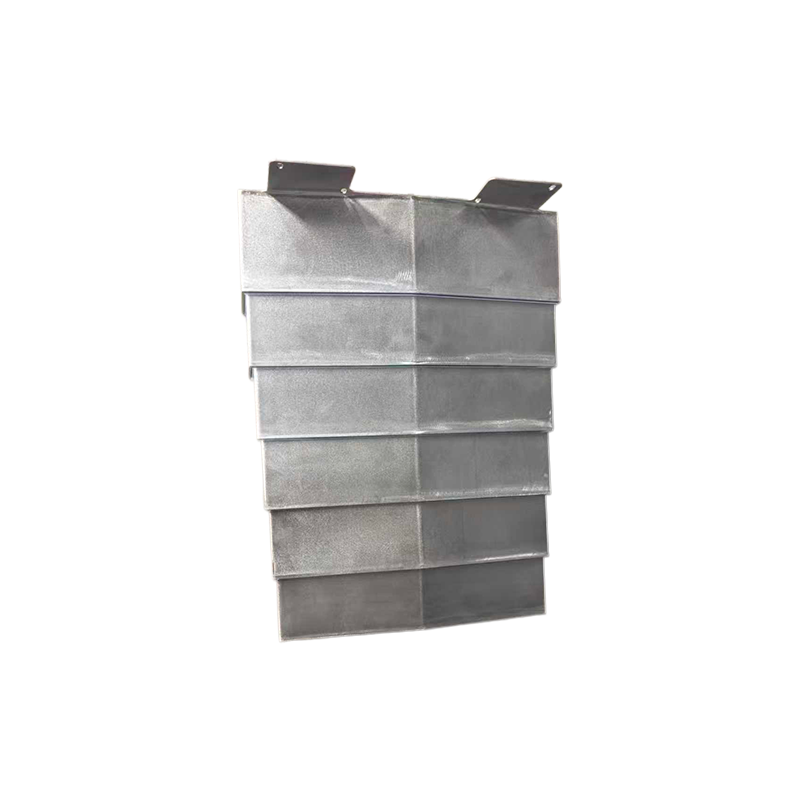

特殊钢材制的伸缩式护罩
Expansion Shield made of Special Steel
特点：该产品有钢板和不锈钢板制成的防护罩，质优寿命长，能防冷却液和乳液；防铁屑，能防工具的偶然事故 。
速度： 一般类型护罩速度为12米/分、如用户需要，可制成特殊内部结构，最高速度为80米/分。
外型：该产品外型美观，可为给机床生产厂带来可观的经济效率。
Features:This product has a long life time and is coolantres istont,and prevent irondebris from getting into inside and also eleminate accidents
Speed: For ordinary tqpe of shieed:12m/mjnute.if necessary,max.spoed can be 80m/minute.
Appearance:It has a very nice—looking appearance,which resnet is very big economic benefit.
钢 板 机 床 导 轨 防 护 罩 设 计 参 数
Design date for steel plate of machine tools guide shield
代号
Code | 名 称
Description | 数据
Date mm | 备注
Remmarks | 代号
Code | 名 称
Description | 数 据
Date mm | 备 注
Remarks |
| Le | 拉伸后长度
Length after drawing |
|
| Bs | 滚轮支承宽度
Contact supporting width |
|
|
| Lz | 压缩后长度
Length after compression |
|
| Bm | 滑块支承宽度
Slider supporting width |
|
|
| Lt | 行程
Travel range |
|
| α°、β° | 弓型倾角
Bow-shaped dip |
|
|
| B | 导轨宽度
Width of guide |
|
| Y | 预计节数
Estimated number of folds |
|
|
| Bc | 防护罩总宽
Shield width |
|
| 8 | 钢板厚度
Thickness of steel plate |
| 用户预选
Pre-selecte by users |
| H | 防护罩总高
Total height of the shield |
|
|
| 安装孔
Assembling hole |
| 用户自定
By user |
| Hi | 导轨侧面高度
Side height of guide |
|
| 钢板材料
Steel Plate material | 1Cr13 | 2Cr13 | 用户自定
By user |
| H2 | 导轨上护罩高度
Side height of guide |
|
| 支撑形式
Supporting manner | 滚轮
Pulley | 滑块
Slidingpiece | 用户自定
By user |
| H3 | 安装位置高度
lustallation position wldth |
|
| 配套机床型号
Compount maline's type |
|
|
|
| H4 | 安装板高度
Height of assembling plate |
|
| 委托单位
Entrusting party |
|
|
|
| H5 | 滚轮高度
Height of contact roller |
|
| 联系人
Contact person |
| 电话
Tel |
|
|
 注：1.用户订货时只要填明以上数据、选定材料，我公司代为设计、制造。
2.如用户对护罩型式有特殊要求，我公司可与用户协商设计，满足要求。
3.每种防护罩填写一张。如样本不够，可复印填写。
Note:1.The endusers select data and materials mentioned above and our company will alle care of the fabrication and dsign work.
2.If endusers have special reguirements for shield type,please cef us knowand we can achieve for them.
3.One form for one type of shield.
|
